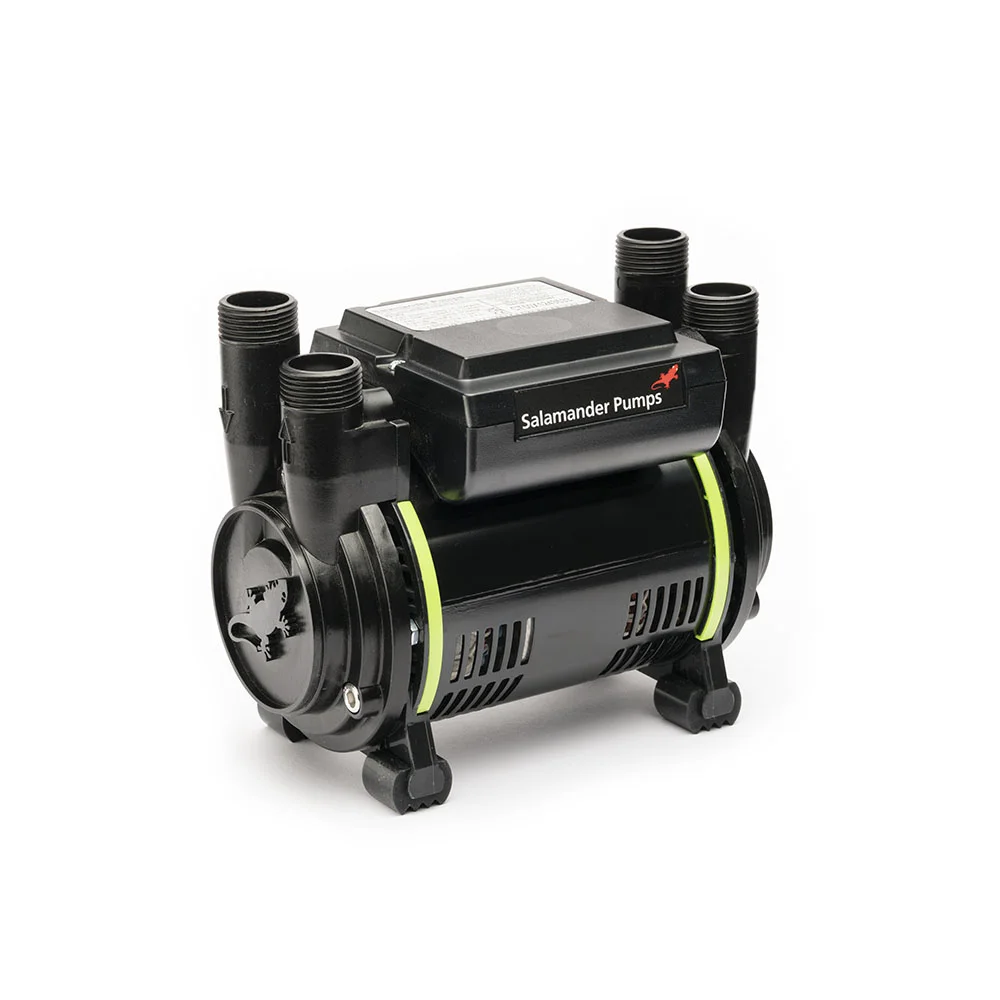

Salamander CT75 Xtra 2.0 Bar Positive Head Twin Shower Pump

The Salamander range of CT Xtra Shower Pumps are tough, easy to fit general purpose twin booster pumps, this range will boost the hot and cold water supplies to thermostatic or manual shower mixer valves.

The CT75 Xtra is ideal for conventional showers, Victorian can style shower heads up to 125mm, multi-function showers or champagne spray.

Product Details

• WRAS Approval: 1309001
• Pump Type: Regenerative
• Mecahnical Seal: Nitrile/Carbon/ Ceramic
• Noise: 53.5dBA
• Anti-vibration feet: Yes
• Inlet isolators only on ‘+’
• Flexible Hoses: 4
• Pressure @ closed head: 2.0 bar
• Pressure @ 8lpm: 1.7 bar
• Pressure @ 16lpm: 1.3 bar
• Maximum water Temperature: 60 C
• Pump connections: 3/4″ BSP
• Hose connections (UK model): 3/4″ female x 15mm push-fit x 195mm long
• Hose connections (ROI model): 3/4″ female x 21mm push-fit x 195mm long
• Motor type: A.C induction
• Motor duty rating: Continuously rated
• Power supply: 230V
• Current (full load): 2.05 Amps
• Power consumption: 484 Watts
• Fuse rating: 3 Amps
• Power cable (pre-wired): 1.5 metres
• Enclosure protection (IP rating): IPX 2
• Length: 185mm
• Width: 120mm
• Height (Excluding hoses): 160mm
• Weight (Excluding hoses): 3.96 kg

Made in Britain

Suitable for positive head installations only.
