Orion Square Dual Concealed Thermostatic Shower Valve – Chrome

Orion Dual Concealed or Exposed Thermostatic Shower Valve with Square Back Plate (Polished Chrome)

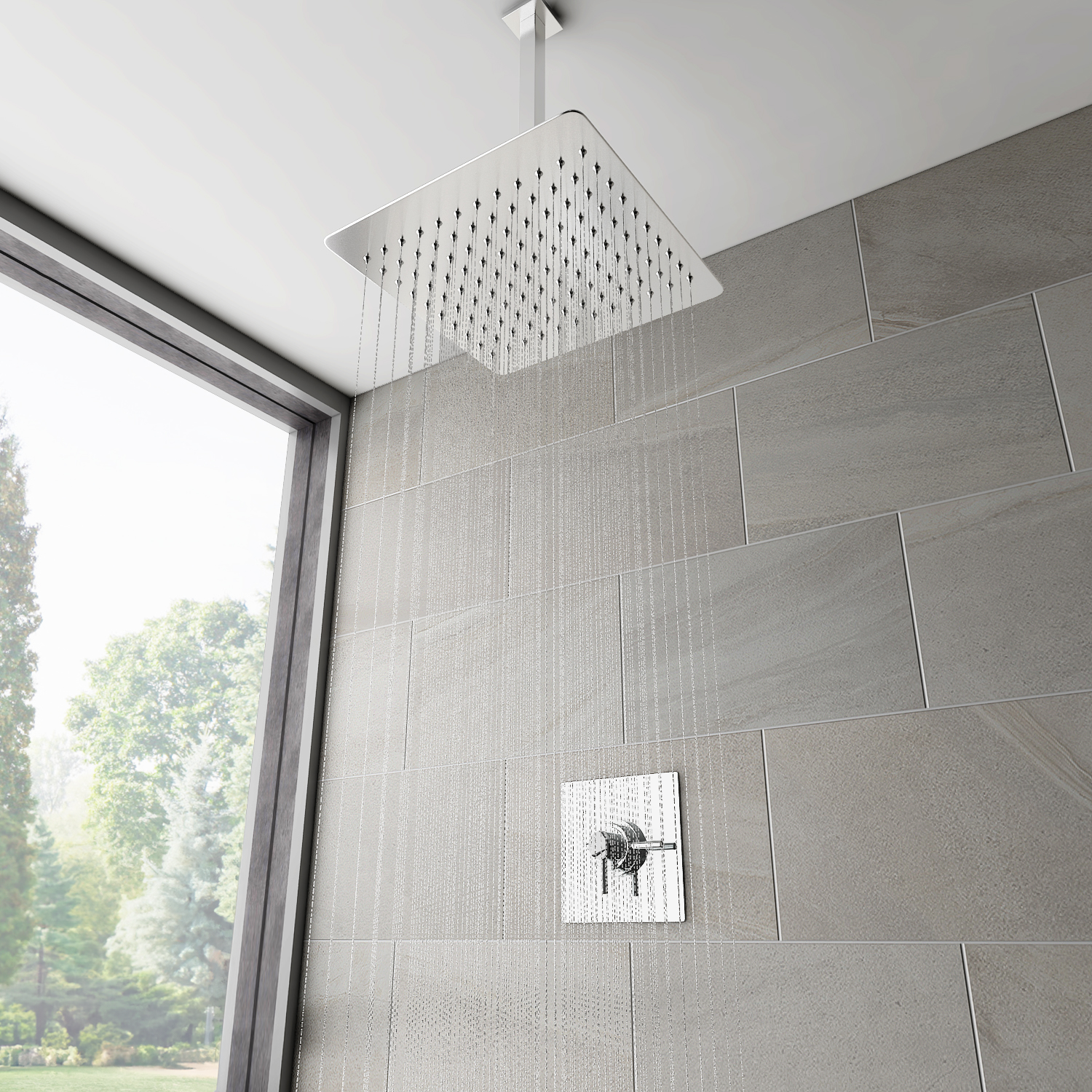

The minimalist Orion concealed thermostatic shower valve with a square back plate offers thermostatic showering, controlled by two easy-to-operate handles. One handle controls the flow, while the other allows temperature adjustment. This valve can be used with either a fixed shower head or a slide rail kit. Additionally, it includes a built-in anti-scald device for added safety in case of cold water supply failure. The Orion Dual concealed thermostatic shower valve adds sophistication and style to any bathroom.

Product Details:

• Height: 200mm
• Width: 200mm
• Type: Dual Concealed Shower Valve
• Handle Type: Round Lever
• Style: Modern
• Colour/Finish: Chrome
• Material: Solid brass
• Operates: Single shower accessory (1 Outlet)
• Mounting: Wall-mounted
• Valve Installation: Can be installed either concealed or exposed.
• Back Plate Shape: Square
• Smooth Operation: Quality components ensure smooth operation.
• Water Pressure Range: 0.5 bar to 5 bar
• Anti-Scald Technology: Provides safety in case of cold water failure.
• Suitability: Designed for modern pressurized plumbing systems.
• Inlet Centers: 150mm between pipe inlet centers
• Hot Water Temperature Range: 55 to 85 degrees Celsius
• Gravity Fed Systems: If you live in an older property with a low-pressure gravity-fed system, this shower valve requires a minimum pressure of 0.5 bar. We recommend installing a negative or universal pump (sold separately). Note that positive pumps will not work.



Guarantee: 5 years (1 year on serviceable parts, such as internal components like check valves and cartridges).

Please note that all measurements provided are approximate, and the product images are for illustrative purposes only. If you have a gravity-fed system, ensure proper installation with the recommended pump for optimal functionality.
