Milan Square 2 Outlets Thermostatic Bar Shower Valve

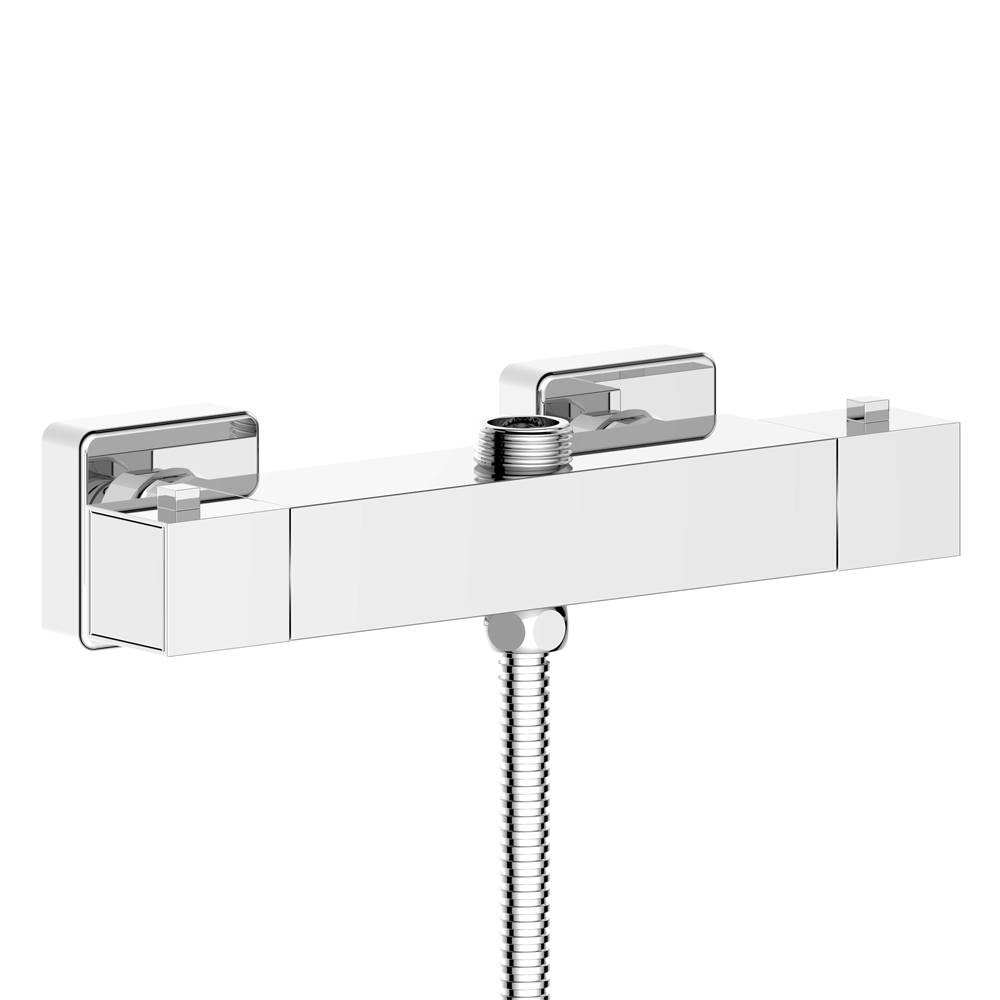

Milan Square 2 Outlets Thermostatic Bar Shower Valve in Chrome

Introducing the Milan Square 2 Outlets Thermostatic Bar Shower Valve in Chrome. If you’re in search of luxurious and contemporary shower fittings, this valve is worth considering. It features two outlets, allowing it to be paired with both a showerhead and a handset. The unit is thermostatically controlled, ensuring a consistent temperature even if a tap is running elsewhere in the house.

For added comfort and safety, the built-in anti-scald feature maintains the spray at a maximum of 38°C, unless manually adjusted with the push value. The valve also includes decorative covers on the pipework to conceal tile edges, resulting in a clean and neat appearance.

Product Details:

• Width: 262mm
• Depth: 71mm
• Height: 35mm
• Style: Modern
• Range: Bar Showers
• Handles: Square
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• 2 Outlets (Top / Bottom)
• Thermostatically controlled
• Built-in anti-scald device

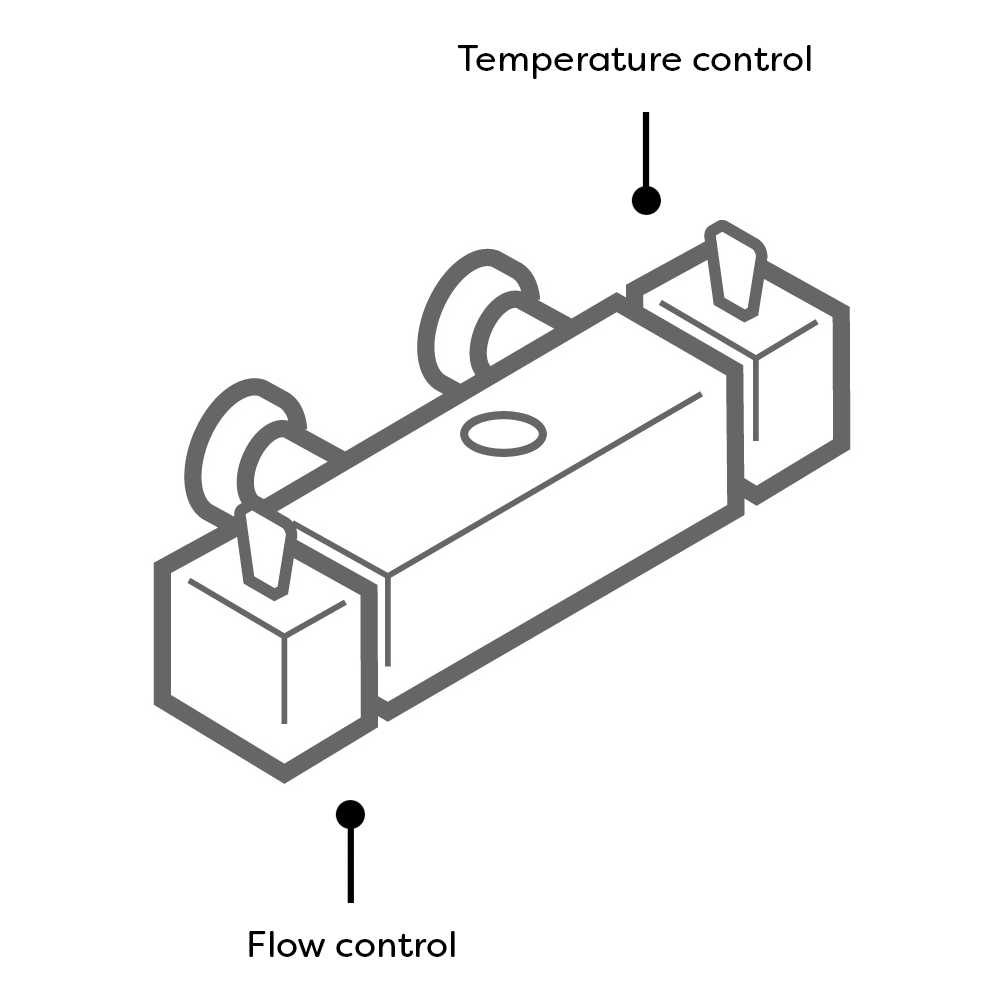

• Separate controls for temperature and flow
• Incorporates a diverter to control flow between overhead and hand shower
• Easy installation
• Factory pre-set temperature: 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Top Outlet: 18 mm (3/4″ BSP)
• Bottom Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump



Please Note:

Product images are for illustrative purposes only and may differ from the actual product.

Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

The shower hose is not included.

Gravity Fed Systems: If you reside in an older property, there’s a high probability you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar, so we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
