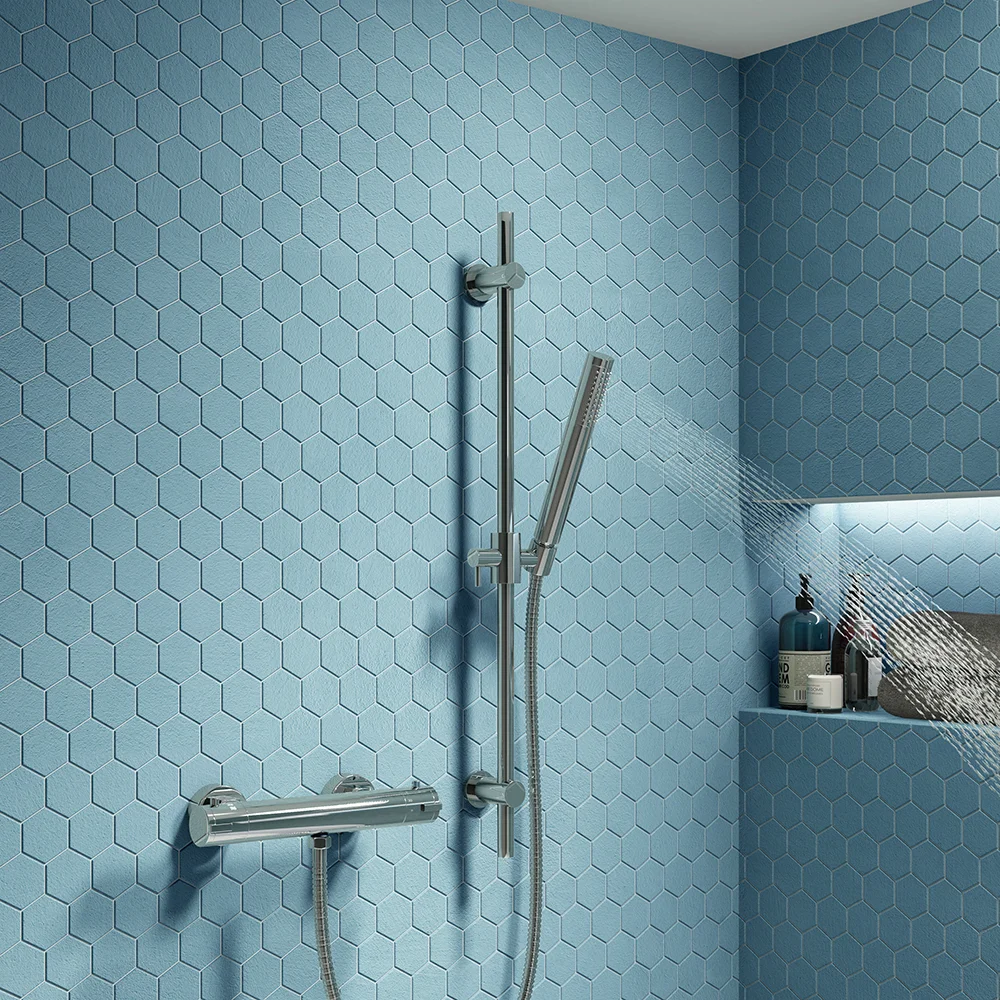

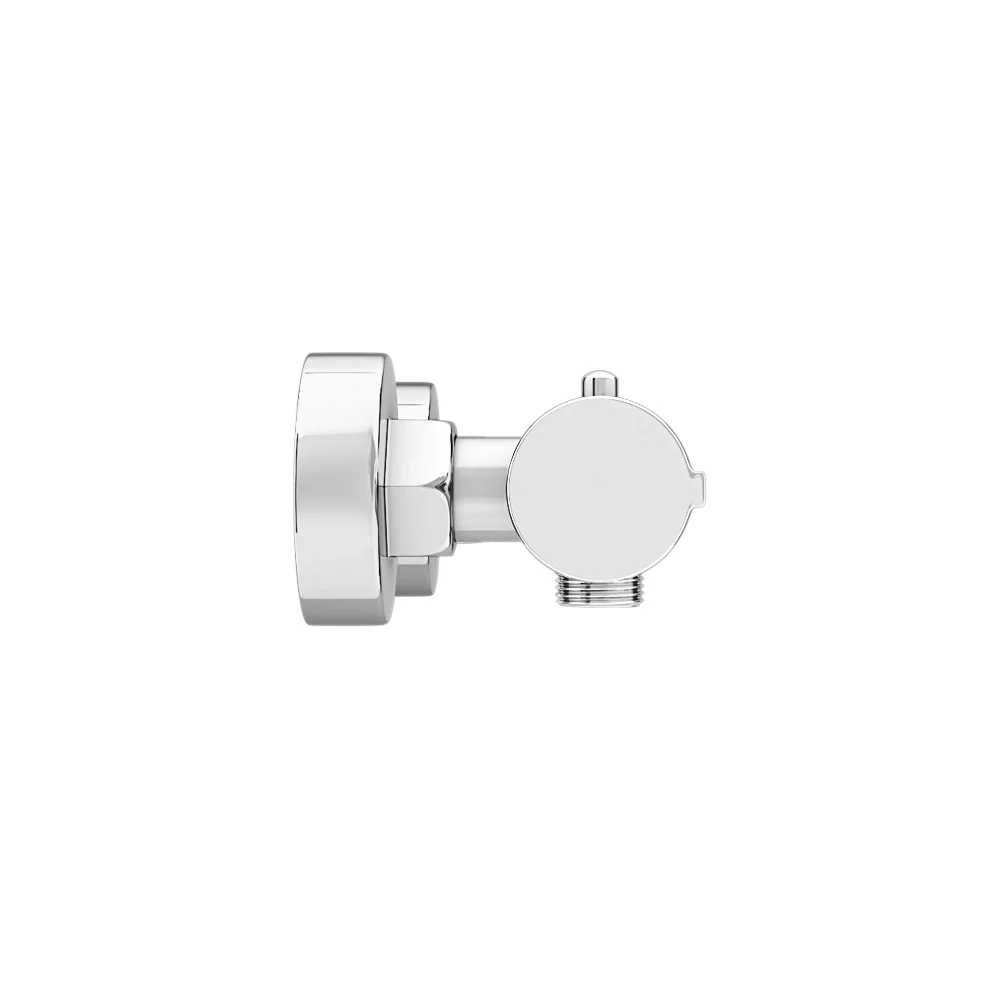

Cruze Round Bottom Outlet Thermostatic Bar Shower Valve

This sleek Thermostatic Bar Shower Valve from Cruze features two simple to use controls – one for flow and one for temperature. Thanks to its clever anti-scald technology, you can rest assured the water will never exceed an optimal 38°C. The shower mixer bar is constructed from solid brass with a chrome finish. Why not tie this modern look together with some understated curved bath taps?

Product Details

• Width: 270mm
• Depth: 79mm
• Height: 40mm
• Style: Modern
• Range: Bar Showers
• Handles: Round
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Bottom Outlet
• Thermostatically controlled
• Built-in anti-scald device

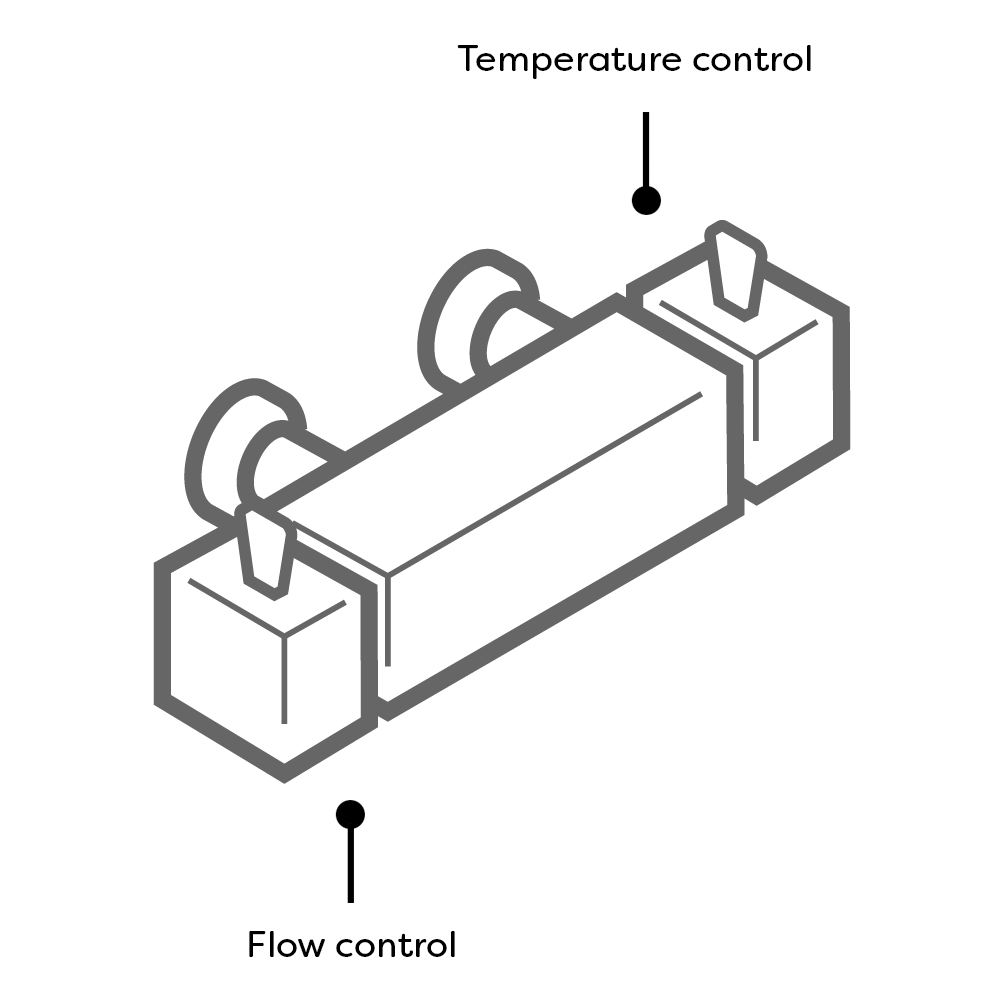

• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 8.2 L/M
• 1 bar – 12.3 L/M
• 2 bar – 17.9 L/M
• 3 bar – 22.1 L/M
• 4 bar – 25.6 L/M
• 5 bar – 28.6 L/M

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images for illustration purposes only

Does not include shower hose.

Gravity Fed Systems:

If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
