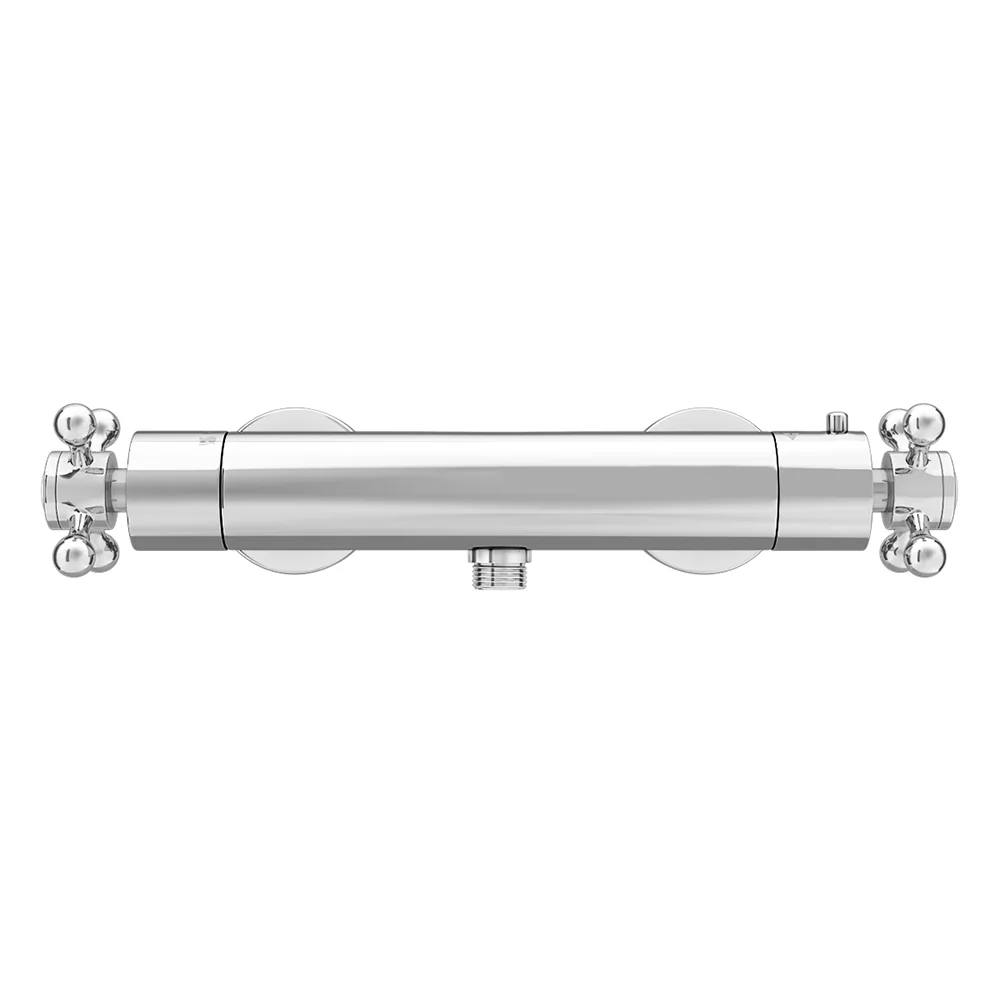

Chatsworth Traditional Crosshead Bottom Outlet Thermostatic Bar Shower Valve – Chrome

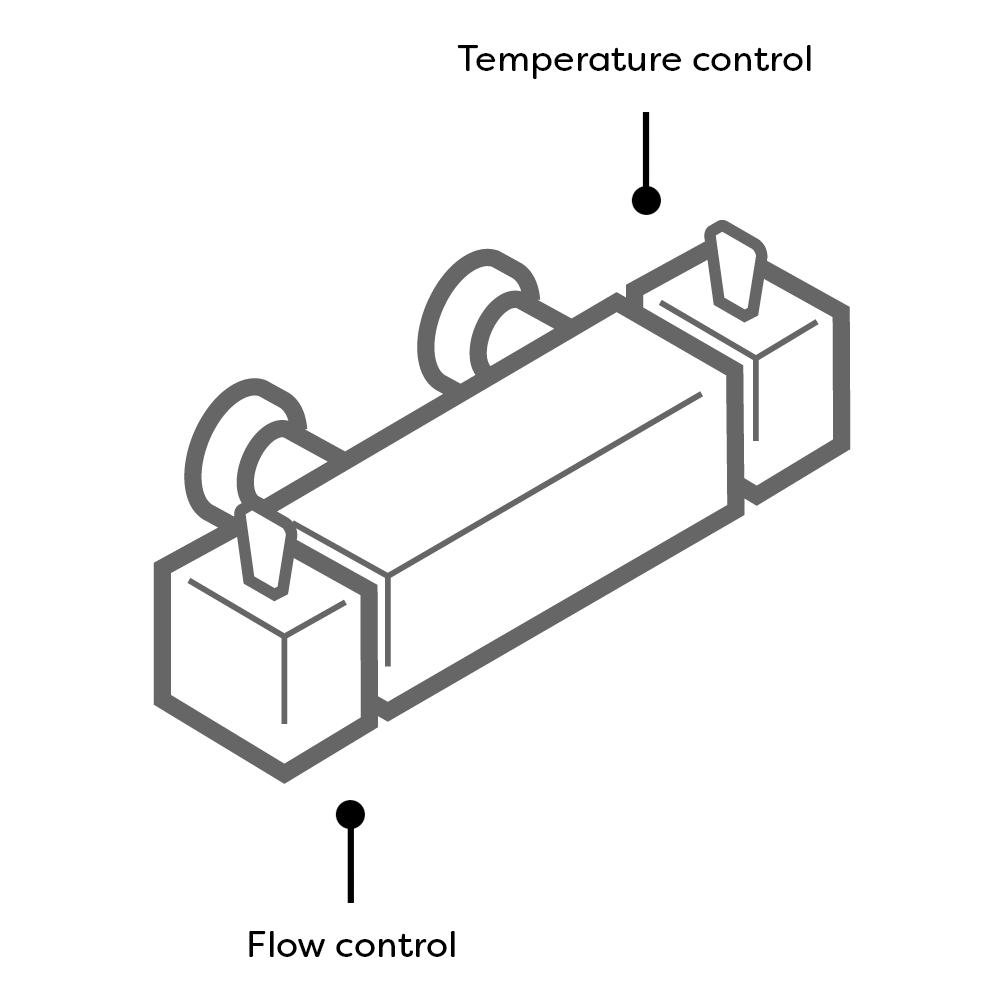

The Chatsworth exposed thermostatic bar valve with bottom outlet is part of our traditional collection of bathroom products. Classic styling with a chrome finish and constructed from solid brass, the Chatsworth bar valve has two cross-head tap head controls with classic white indices, one controls the flow and the other controls the temperature. Featuring the latest anti-scald technology, the valve is pre-set to a safe and optimal 38°C, this can be easily offset by holding down the safety push and click value on the handle. Designed to be used with a slider rail kit (not included). Â
The Chatsworth exposed thermostatic bar valve with bottom outlet is part of our traditional collection of bathroom products. Classic styling with a chrome finish and constructed from solid brass, the Chatsworth bar valve has two cross-head tap head controls with classic white indices, one controls the flow and the other controls the temperature. Featuring the latest anti-scald technology, the valve is pre-set to a safe and optimal 38°C, this can be easily offset by holding down the safety push and click value on the handle. Designed to be used with a slider rail kit (not included). Â
Product DetailsÂ
- Width: 304mm
- Depth: 100mm
- Height: 40mm
- Colour/Finish: Polished Chrome
- Material: Solid Brass Internals
- Style: Traditional
- Type: Bar Shower Valve

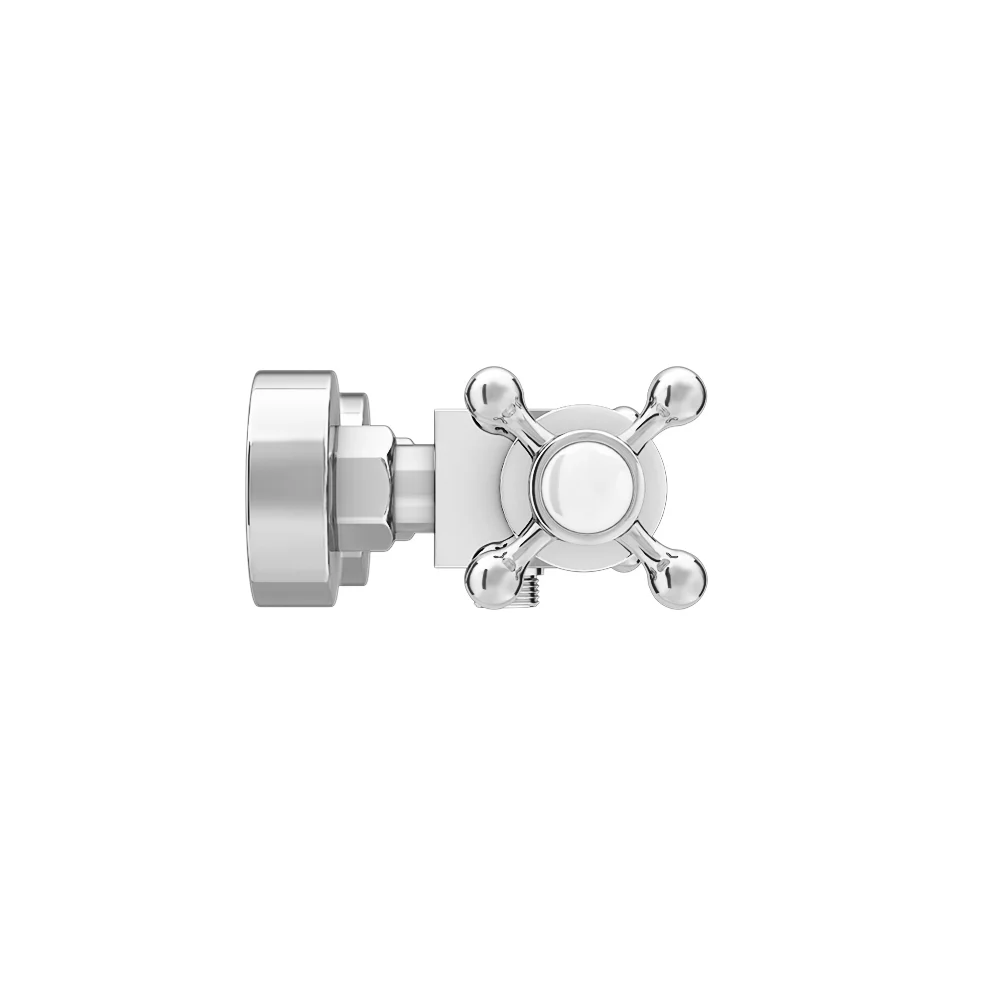

- Handles: Cross-head
- Ceramic White Indices
- Surface / Wall Mounted
- Bottom Outlet
- Thermostatic shower control valve for comfort and safety
- Built-in anti-scald device
- Separate controls for temperature and flow
- Easy installation
- Factory pre-set temperature 38°
- Durable and dependable
- 150mm between pipe inlet centres
- Water Pressure: 0.5 bar to 5 barÂ
- Outlet: 15 mm (1/2″ BSP)
- Hot water temperature 55 to 85 Degrees
- With gravity fed systems a pump will be required, we recommend a universal or negative head pump
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
All measurements are approximate
Product images for illustration purposes only, does not include shower kit.
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
