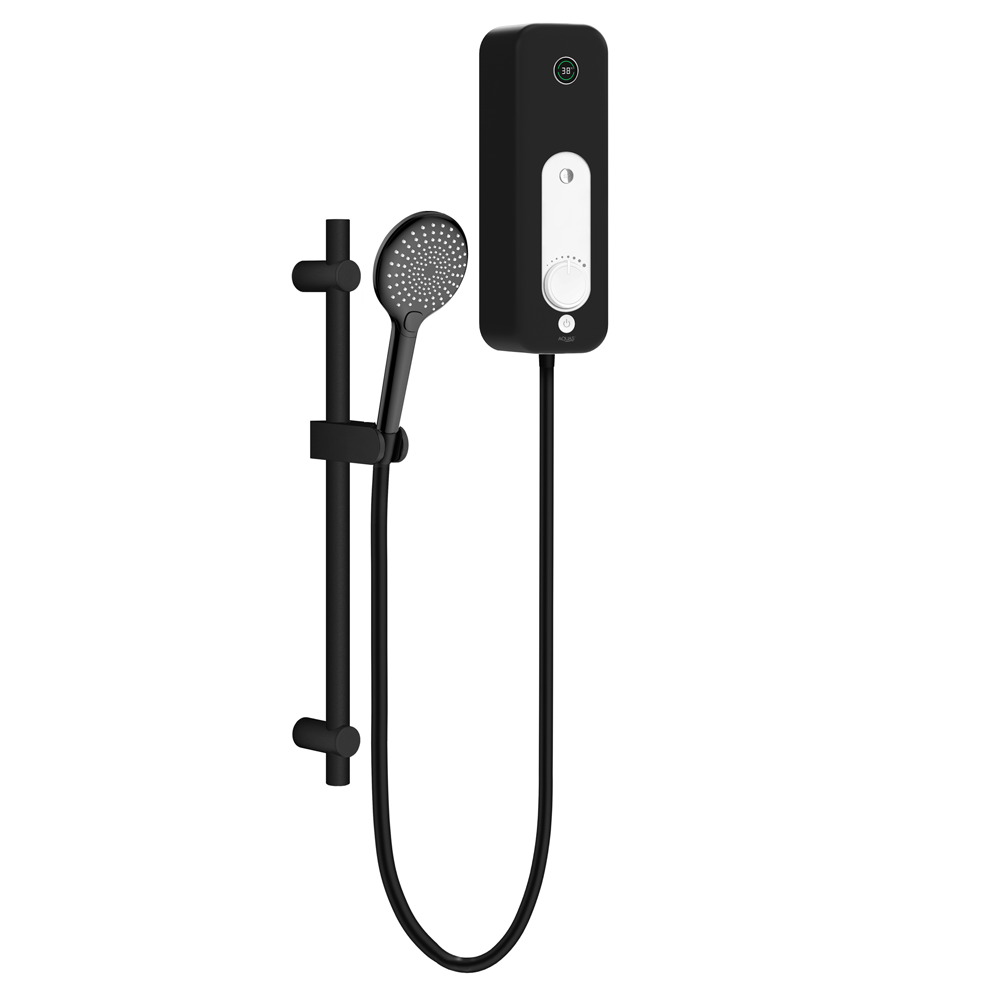

AQUAS Spa Fit 9.5kw 1 Outlet Matt Black Electric Shower

AQUAS Spa Fit Semi Digital 9.5KW Matt Black Electric Shower (1 Outlet) A000593

The powerful 9.5KW AQUAS Spa Fit is a Semi-Digital Smart Electric Shower and comes with a 3F function Hand shower.

The hand shower spray outlet nozzles are easy to clean and use state-of the art material for a precise spray. The all-new Vento 120 3F shower is a perfect match for electric showers. It comes with three different spray combinations. The liquid silicone nozzles are optimised for flow. The push value makes changing spray easy.

You can even adjust the heating power to 5KW for an eco-friendly flow without compromising on your invigorating shower experience.

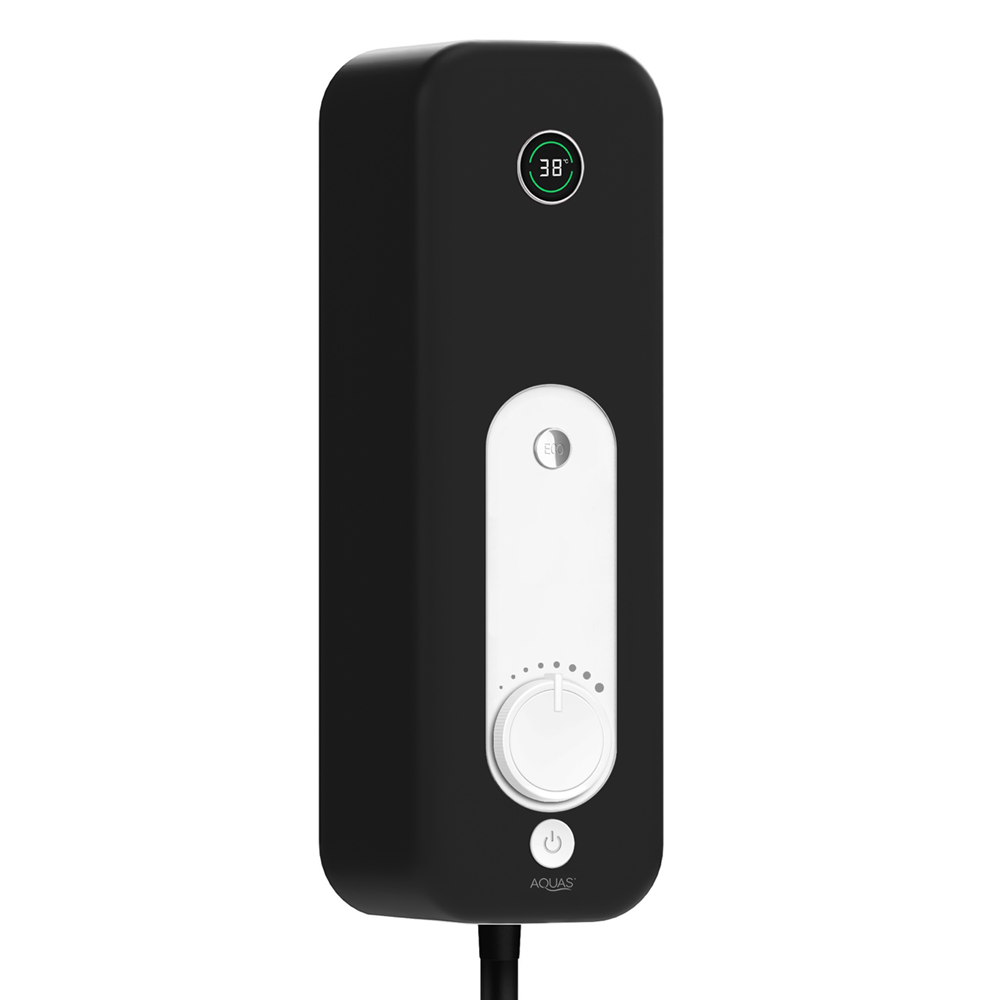

Temperature Display

The Spa flex shower comes with a temperature display which aids safety. The display also indicates if the heater is in Full Heating Power or Eco Mode
The full power setting 9.5kw is for the cooler seasons with Fully lit circle (GREEN ) on display
The ECO 5kw setting for is for the warmer months – with Half circle (GREEN) on display
The shower has cold start technology and will display a count down on the display before the shower stops
Power settings remain in position even after restarting the shower for comfort
Before activating the 9.5kw setting we recommend turning the Volume control to full cold and adjusting to a hotter setting if required

Product Details:

• Range: Spa
• Name: Fit
• Colour: Matt Black Face / Matt Black Body

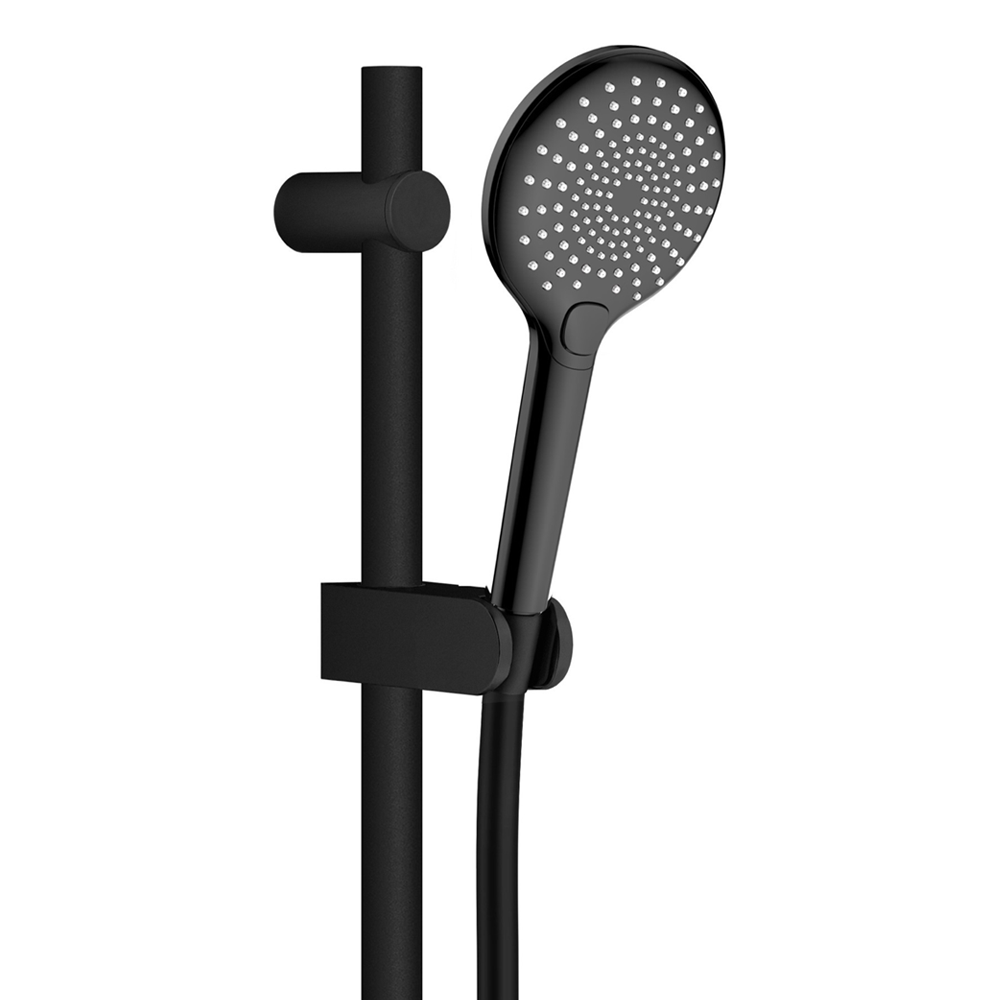

• Handshower:  120mm diameter, 3 spray pattern: rain, massage, mixed
• Slidebar: Rail length 600mm with front loading slider
• Distance between rail brackets adjustable.  Bottom bracket fixed , TOP Bracket Free Fix)
• Smooth black hose 1,5m 1/2″ x  1/2″ . One conical nut is twistfree and should be connected to the handshower . Both Fixation nuts are ABS / Non conductive for safety
• Power Rating: 9.5kw
• Minimum Flow required: 1.0 Bar Static, 1.5 Dynamic flowing pressure
• Temperature control:
• Electricity leakage safety
• High pressure protection
• Temperature and flow stabiliser
• Advantages:
• Fiber reinforced Tank – less limescale, extended life, energy efficient, burst resistant
• Controls:
• Start/Stop value
• Easy Grip – temperature control
• Electrical connection
• Water entry points right – top, bottom, back
• All Spa models have a water connection that is suitable for a “right” only water supply connection.
• The water connection pipe is not reversible.
• Use standard UK plumbing connections – compression – Push fit.
• Cable entry points right hand side – top, bottom, back
• Outlet connection 1/2″ compression and push fit 1/2″
• Power Input:
• A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• Min-Max Working Pressure:
• A Min Dynamic flow pressure of 150 K /Pa ( 15 ib / Sq In ) – 1.5 BAR  is required
• A Max Static pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded
• Approvals: BEAB, CE UKCA



Images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
The AQUAS shower requires a minimum static water pressure of 1.0 bar, delivering a flow rate of at least 9 litres per minute for proper functionality. For optimal performance and a superior showering experience, a pressure of 1.5 bars or higher is recommended.

If installing the shower with a gravity-fed water tank system (commonly located in lofts), it must be paired with a negative or universal head shower pump for sufficient pressure. However, this setup is not recommended, as the AQUAS shower is designed to have its own independent water feed directly from the mains supply.
